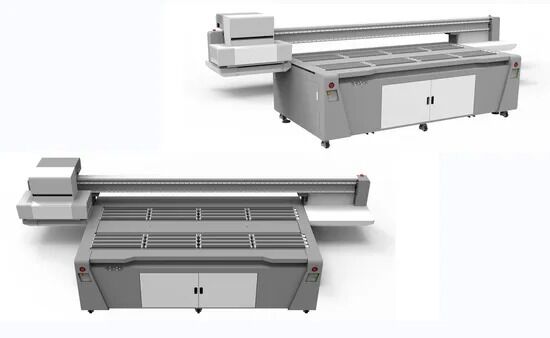

Digital Vacuum Bottle Cylinder Screen UV Inkjet Printer 2510
Key Features
- High Precision: 3.5pl droplet size provides optimal throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes for different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and wetting during non-working state prevents blockage from ink curing
Technical Specifications
| Equipment Model |
CF-2510 (Duplex) |
| Nozzle Type |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Effective Orifice |
1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distributing and wholesaling UV printers, including single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory is located in Panyu, Guangzhou, Guangdong Province, with over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services. With over 10 years of experience manufacturing UV printers, we have received positive feedback from clients worldwide and export to France, Germany, Vietnam, India, and other countries. Our products are certified with CE and RoHS compliance.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
White ink enables printing on virtually any media by generating high-quality graphics on hard or soft materials like acrylic boards or backlit films, and can serve as a primer for non-white materials. Varnish enhances picture brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, and more. UV printing eliminates the need for coating, reduces fading and blistering issues, and saves significant working hours for rigid identification boards, hard cardboard, corrugated boxes, and specialty markets including glass, tiles, wood, and furniture.
Q3: Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
Our experienced technical team provides comprehensive support for all customers, including operational training until full mastery. We also offer international technical support with on-site testing and repair services when needed.
Q5: Regarding printer maintenance
We recommend purging ink daily when the printer is turned on. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
We are a factory manufacturer, enabling us to provide competitive pricing and high-quality services directly.
