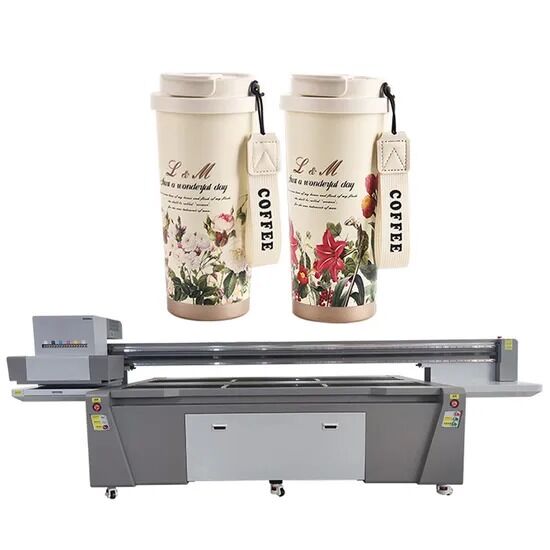

Seamless Design Stickers Automatic Drucker Cylinder UV Printer 2510
Product Features
- High Precision: 3.5pl droplet size provides optimal balance between throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes adapt to different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and wetting during non-working periods prevents blockage from ink curing
Technical Specifications
Model: CF-2510 (Duplex)
| Nozzle Selection | Ricoh GEN 5i |
| Print Size | 235cm × 63.2cm |
| Printing Height | 0-15cm (Customizable) |
| Equipment Size | 412cm × 159cm × 144cm |
| Equipment Weight | 860kg |
| Printing Software | Photoprint / PrintFactory |
| Ink Type | LED Environmental Protection UV Ink |
| Ink Colors | W+CMYK+Varnish |
| Maximum Power | 3000W |
| Effective Orifice | 1280 |
| Ink Drop Volume | 3.5PL |
| Nozzle Length | 27MM |
| Single Nozzle Color | 4 |
| Rated Voltage | 240V 50/60HZ |
Company Profile
Guangzhou Skydeekenutek Co., Ltd. specializes in distribution and wholesale of UV printers, single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services. With over 10 years of UV printer manufacturing experience, we've received positive feedback from clients worldwide and export to France, Germany, Vietnam, India, and other countries. Our products are certified with CE and RoHS compliance.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
White ink enables printing on virtually any media by serving as a primer for non-white materials and generating high-quality graphics on hard or soft substrates like acrylic boards or backlit films. Varnish enhances print brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, wood boards, and more. UV printing eliminates coating requirements, prevents fading and blistering, and saves significant working hours across various applications.
Q3: Which languages does the RIP installation interface support?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
Our experienced technical team provides comprehensive support, including operational training until full proficiency is achieved. We also offer international technical assistance for testing and repair services when needed.
Q5: Regarding printer maintenance
We recommend daily ink purging when starting the printer. For extended non-use periods exceeding 10 days, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
We are a manufacturing factory, enabling us to provide competitively priced printers with high-quality services.
